40m TTL Industrial Laser Distance Sensor With Digital Output Arduino Range Module

    Buy cheap 40m TTL Industrial Laser Distance Sensor With Digital Output Arduino Range Module from wholesalers

    Buy cheap 40m TTL Industrial Laser Distance Sensor With Digital Output Arduino Range Module from wholesalers
    • Buy cheap 40m TTL Industrial Laser Distance Sensor With Digital Output Arduino Range Module from wholesalers

    40m TTL Industrial Laser Distance Sensor With Digital Output Arduino Range Module

    Ask Lasest Price
    Brand Name : JRT/OEM
    Model Number : 703A-yx120311-1
    Certification : FDA
    Price : Negotiation
    Payment Terms : T/T, Western Union, Pay pal
    Supply Ability : 10000 pcs/day
    Delivery Time : 1-3 working days
    • Product Details
    • Company Profile

    40m TTL Industrial Laser Distance Sensor With Digital Output Arduino Range Module

    40m TTL Industrial Laser Distance Sensor With Digital Output Arduino Range Module

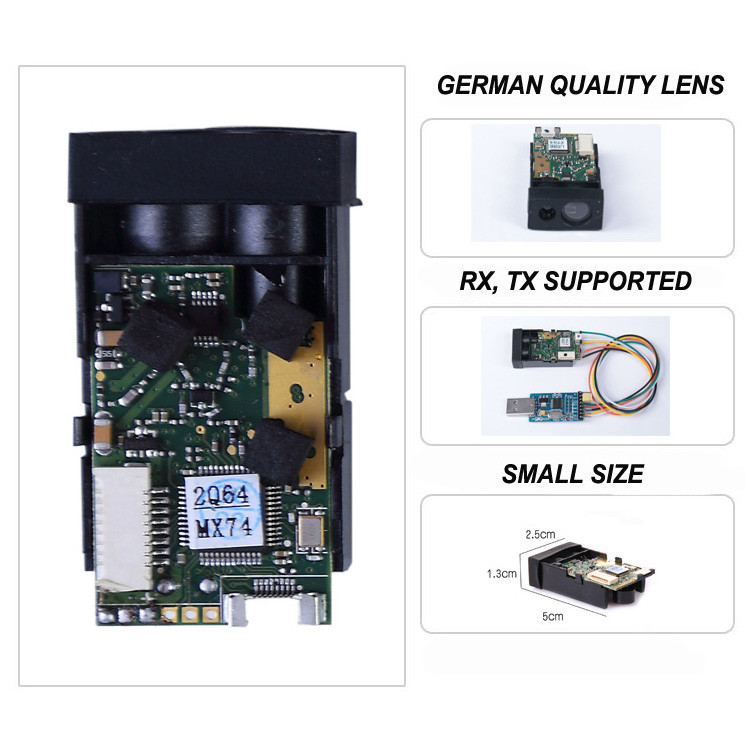

    The 703A JRT Sensor long Industrial Laser Distance Sensor, features a detection range of 1.18″ to 131 feet (3 cm to 40 m) with +-1mm high accuracy. The long range also gives you higher resolution measurements of 1mm, and the lower minimum detection distance makes this sensor great for detecting very close objects. If you need the 4-20ma analog distance sensor, longer distance or other reqirements, pls contact us to inquiry.

    Features summary
    Operating voltage: 2.0 V to 3.3 V
    Distance measuring range: 3 cm to 40 m (1.18in to 131ft)
    Output type: diital voltage Industrial Laser Distance Sensor
    Size: 45 mm × 25 mm × 12 mm (1.77″ × 0.98″ × 0.47″)
    Weight: 10 g/PCS (0.35 oz)

    Instructions of Digital Industrial Laser Distance Sensor

    40m TTL Industrial Laser Distance Sensor With Digital Output Arduino Range Module

    Detailed Datasheet of 703A Industrial Laser Distance Sensor:

    Basic Data
    Model Number703A
    Accuracy+-1mm(0.039inch)
    Measuring resolution1mm(1 millimeter)
    Measuring Range0.03-40M
    Laser ClassClass II
    Laser Type620-690nm, <1mw, red
    Size45*25*12mm
    WeightAbout 10g
    Voltage2.0-3v3
    Serial LevelTTL/COMS

    Other Style Products hope can help you:

    Mini laser distance sensorLong laser distance sensor
    40m TTL Industrial Laser Distance Sensor With Digital Output Arduino Range Module40m TTL Industrial Laser Distance Sensor With Digital Output Arduino Range Module
    20m range module100m range module
