Handheld High-Precision 2mm Laser Distance Transducer For Measuring
Distance
Description:
Laser rangefinder is light in weight, small in volume, simple in
operation, fast and accurate, and its error is only one fifth to
one hundred of other optical rangefinders. The hand-held laser
rangefinder generally refers to the laser measuring in the range of
0.05 M to 200 m. Its accuracy is calculated in millimeters, which
is simple and convenient to use. Our white laser rangefinder has a
measuring distance of 0.03-30m, which can meet your daily
measurement needs. The white case is simple and generous, and the
protection level is IP54. JRT focuses on laser ranging. Welcome to
consult.
Laser Distance Transducer Feature:
1. Good for Laser Measurement Solutions Module
2. Support single measurement/continous measurement
3. Data output: RXTX, USB, RS232, RS485, Bluetooth optional
Specifications of Laser Distance Transducer Feature:
| Brand Name | JRT |
| Model Number | D30-1 |
| Certification | FDA/ISO9001/CE/ROHS/FCC |
| Place of Origin | Sichuan |
| Accuracy | ±2mm |
| Laser beam auto off time | 15s |
| Measuring Range (without Reflection) | 0.03-30m |
| Instrument auto off time | 45s |
| Laser Class | Class II |
| Laser Type | 620~670nm,<1mw |
| Size |
62x21x15mm |
| Weight | About 25g |
| Battry type | 200 mAh rechargeable |
| Laser Operating Temperature | 0-40 ℃ (32-104 ℉ ) |
| Laser Storage Temperature | --25~60 ℃ (-13~140 ℉) |
| Measuring reference/Datum switch | Yes |
1. Under bad measure condition, like environment with strong light
or the diffuse reflectance of measuring point over-high or low, the
accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please
use a reflector.
3.120m,150m can be customized.
4. Operating temperature -10 ℃~50 ℃ can be customized.
After-sale sercice
1. Our laser range finder products are monitored before shipment.
2. Customer satisfaction is the most important thing for us. We
offer a one-year warranty and lifelong technical support. If you
have any questions or questions about the use and maintenance of
the product, you can contact us by e-mail, WhatsApp, Skype,
telephone, etc. We will contact you as soon as we receive the
information.

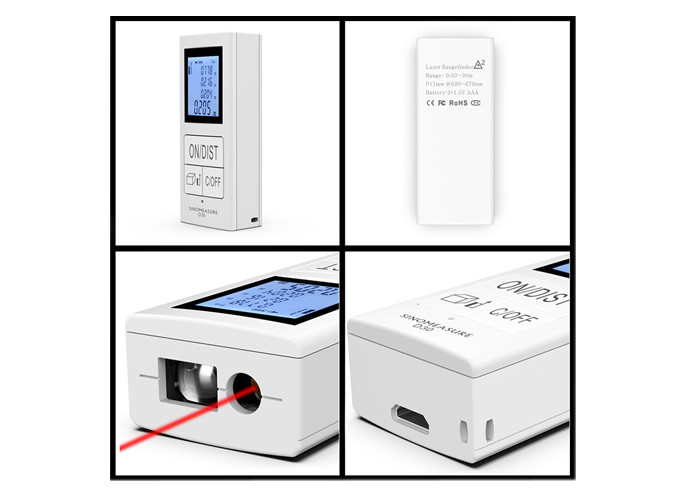

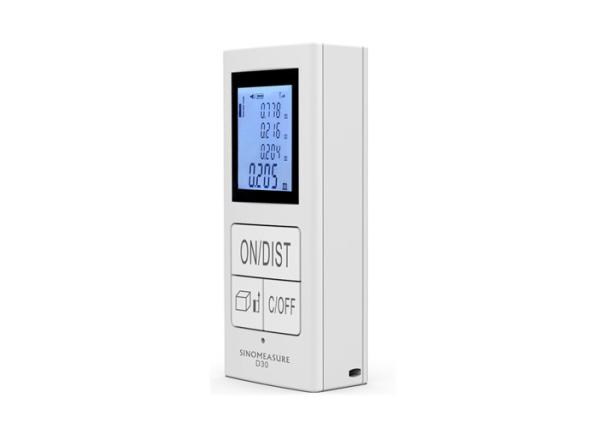

Product Pictures:
62x21x15mm
