    TOF Rapid Response Time Of Flight Distance Sensor For Short Range

    Ask Lasest Price
    Brand Name : JRT
    Model Number : IT02S
    Certification : CE ,ISO9001,ROHS, FCC ,FDA.
    Price : Please contact us
    Payment Terms : T/T, Western Union, Pay pal
    Supply Ability : 10000 pcs/day
    Delivery Time : 1-3 working days
    • Product Details
    • Company Profile

    TOF Rapid Response Time Of Flight Distance Sensor For Short Range

    TOF Rapid Response Industrial Laser Distance Sensor Short Range

    Product Description:

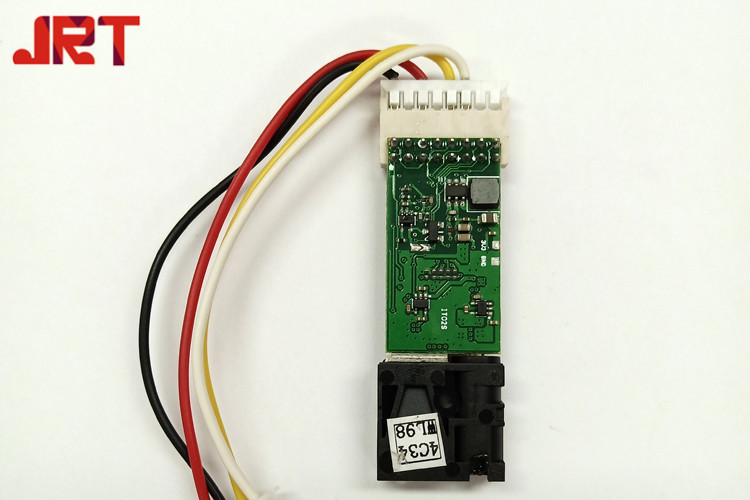

    IT02S is a new generation of ultra-small single-point ranging laser radar module developed by our company. It has fast measurement frequency and allows you to measure moving objects. If you need to measure the bevel, round face, the measurement can only be made when the target area is large enough to accommodate the laser spot. This laser ranging product can help sweeping robots, drone obstacle avoidance, safety inspection, material management and so on. Welcome your inquiry to buy.


    Industrial Laser Distance Sensor Feature:


    1. Stable performance, high and low temperature resistance -10~+50°C;

    2. Small size, easy to install and support, continuous measurement;
    3. UART serial output, easy to use.

    Specifications of Industrial Laser Distance Sensor:


    Model NumberIT02S
    Measuring Distance0.1-10m @90% reflectivity
    Frequency100Hz
    Accuracy4cm @90% reflectivity
    Absolute Accuracy90% reflectivity:8cm @ within 7m
    Blind Area10cm
    Resolution1cm
    Light650nm, <1mw,red,class 2
    Resistance to Light10000 LUX
    Working VoltageDC +3.3V,
    Operating Current(@100Hz)51mA(2)
    Power(@100Hz)168 mw(2)
    Working Temperature0-40 ℃(regular)
    Serial levelTTL 3.3V
    Size46*17*7mm
    Weight10g


    FAQ:


    Q1: What are the advantages of TOF ranging products?
    A1: The most prominent feature is the high measurement frequency. If you need to measure moving objects, then TOF is the right product for your needs.
    Q1: How about your after-sales protection?
    A2: We provide one year warranty and lifetime technical support. You can always consult us if you have any questions about product use and product maintenance.
