10m U85A Industrial Laser Distance Sensor For Safety System 2mW
Strong Light
Description:

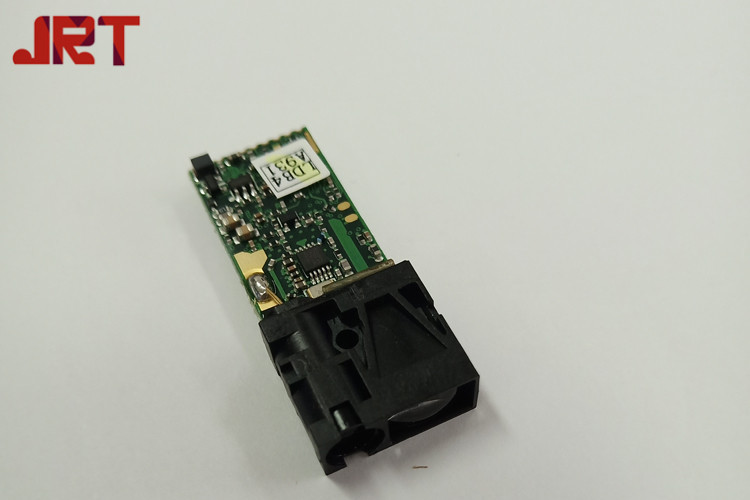

The 10m U85A Industrial Laser Distance Sensor of 41*17*7mm and it
belongs to one of our U81 series products, it's the latest version.
JRT Industrial Laser Distance Sensor can measure from 0.03m to 10m.
This industrial laser distance sensor can be customized Strong
Light up to 2mW. Industrial Laser Distance Sensor mainly suitable
for short-distance high-leveling and high-precision measurement. In
addition, this Industrial Laser Distance Sensor ranging module is a
serial module connected to USB interface, suitable for a variety of
application scenarios. such as safety system, robot,elevator,drone
smart measuring project ect.
Industrial Laser Distance Sensor Feature:
1. Good for Industrial laser distance sensor
2. Support single measurement/continous measurement
3. Data output: RXTX, USB, RS232, RS485, Bluetooth optional
Specifications of Industrial Laser Distance Sensor:
| Brand Name | JRT |
| Product Name | Industrial Laser Distance Sensor |
| Model Number | U85 |
| Certification | FDA/ISO9001/CE/ROHS/FCC |
| Place of Origin | China |
| Accuracy | ±1 mm (0.04 inch) |
| Measuring Unit | meter/inch/feet |
| Measuring Range (without Reflection) | 0.03-5m |
| Measuring Time | 0.125~4 seconds |
| Laser Class | Class II |
| Laser Type | 620-690nm, <1mW |
| Size | 41*17*7mm (±1 mm) |
| Weight | About 4g |
| Voltage | DC2.0~3.3V |
| Electrical Level | TTL/CMOS |
| Frequency | 3HZ~8Hz |
| Operating Temperature | 0-40 ℃ (32-104 ℉ ) |
| Storage Temperature | -25~60 ℃ (-13~140 ℉) |
| Packaging | Neutro-packing |
1. Under bad measure condition, like environment with strong light
or the diffuse reflectance of measuring point over-high or low, the
accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please
use a reflector.
3.120m,150m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
