30m Precision Industrial Laser Distance Sensor Radar Long Distance Measuring

Widely Application:
※ Long range distance 30m, good for outdoor using.
※ Continous measurement design for automation monitoring
※ Height measurement for Crane
※ Radar measure principle for car distance

Description:

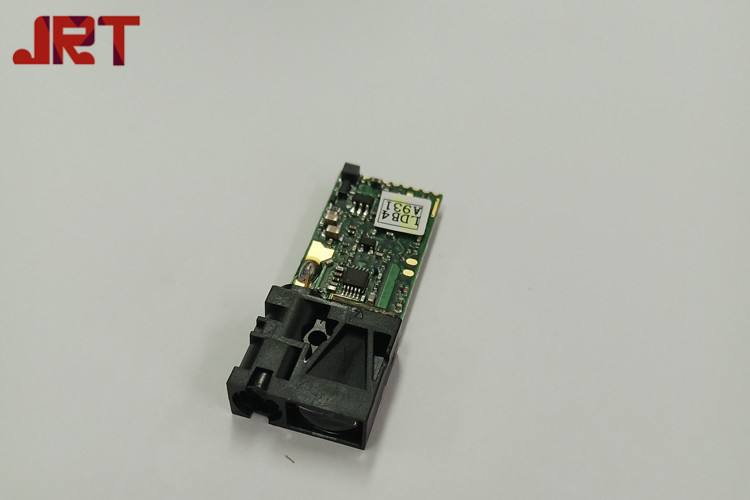

30m Industrial Laser Distance Sensor is a high precision laser range sensor, also can be used in radar measurement projects with 30m long distance. Chengdu JRT provides our customers industrial laser distance sensor measure modules with high frequency up 3hz. For now, the industrial laser distance sensor of 41x17x7mm becomes the smallest size in the world, so it's good for your project ease of manufacture and facilitated assembly.

Specifications of Industrial Laser Distance Sensor:

Model U85
Accuracy ±1 mm (0.04 inch)
Measuring Unit mm
Measuring Range 0.03-30m
Measuring Time 0.125~4 seconds
Laser Class Class II
Laser Type 635nm, <1mW
Size 41*17*7mm
Weight About 4g
Voltage DC2.0~3.3V
Electrical Level TTL/CMOS
Operating Temperature 0-40 ℃ (32-104 ℉ )
Storage Temperature -25~60 ℃ (-13~140 ℉)

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.

Founded in 2004, Chengdu JRT Meter Technology Co.,Ltd. is an enterprise specializing in the production and development of laser distance module industry and trade. It is a manufacturer possess of the world's advanced laser technology single transmit and single receive.

JRT insist on developing and producing laser distance modules with better quality, smaller size, but more favorable prices.We can do OEM /ODM designs and customize product functions as customer required.

Three production line: laser distance meter module;Industrial laser distance sensor; laser range finder.
