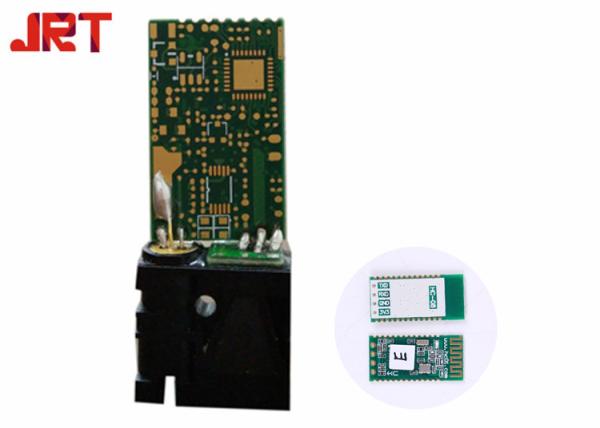

Miniature Industrial laser distance sensor with Bluetooth U81 3hz
Description:
Industrial laser distance sensor is the soul component of a laser
range finder. This Miniature Bluetooth Industrial laser distance
sensor U81 has been widely used on construstions and accessories
industries. As the main part of a laser measuring devices, the
Industrial laser distance sensor shows a great peformance during
working. We have been in this line for more than 10 years, that
means we are skilled to do many customized functions and designs.
The laser tape measure will replace traditional tape measure in
many ways. Don't wait, contact us and start the business now!
Industrial Laser Distance Sensor Feature:
1. Good for Industrial laser distance sensor
2. Support single measurement/continous measurement
3. Data output: RXTX, USB, RS232, RS485, Bluetooth optional
Specifications of Industrial Laser Distance Sensor:
| Brand Name | JRT |
| Product Name | U81 Industrial laser distance sensor with Bluetooth |
| Model Number | U81 |
| Certification | FDA/ISO9001/CE/ROHS/FCC |
| Place of Origin | China |
| Accuracy | ±1 mm (0.04 inch) |
| Measuring Unit | meter/inch/feet |
| Measuring Time | 0.125~4 seconds |
| Measuring Range (without Reflection) | 0.03-10m |
| Laser Class | Class II |
| Laser Type | 635nm, <1mW |
| Size | 41*17*7mm (±1 mm) |
| Weight | About 4g |
| Voltage | DC2.0~3.3V |
| Electrical Level | TTL/CMOS |
| Frequency | 3HZ~8Hz |
| Operating Temperature | 0-40 ℃ (32-104 ℉ ) |
| Storage Temperature | -25~60 ℃ (-13~140 ℉) |
| Packaging | Neutro-packing |
1. Under bad measure condition, like environment with strong light
or the diffuse reflectance of measuring point over-high or low, the
accuracy would have bigger amount of error: ±1 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please
use a reflector.
3.120m,150m can be customized.
4. Voltage can be changed by power converter LDO
5. Frequency would be affected by environment.
6. Operating temperature -10 ℃~50 ℃ can be customized.
